Protective Sleeve Compression Gas Spring Gas Sturt For Treadmill
Specifications
1. High quality
2. 2 years guarantee.
3. Factory,OEM
4. Delivery fast
5. MOQ:50pcs
Good Service,Excellent Quality,Competive Price,Delivery Soon
Feature:
Gas:Nitrogen filled inside
Material:Stainless steel
Color:Black,silver or as the client's request
Connector:Ball joint ,metal eye ,clevis and so on
Quality: We can provide fatigue test report.Our product can open and close
10000 times.
Not leak oil,Our paint passed ROHS test.
No noise ,Smooth operation ,safe an easy installation
Meeting ISO9000 International standard
Packing:1 piece in one plastic bag as standard.
We also can according to customers' request.
Shipping:We accept your appointed forwarder.
Delivery Term:CIF & EXW & FOB
Delivery Lead Time:7 working after get your deposit
Payment:Paypal &
Warranty:With one warranty except man-made trouble.
Sample :We can provide 2 free samples.
MOQ:100PCS
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Tube diameter:22mm
Rod diameter:10mm
Extended length:675mm
Stroke length:300mm
Connector: As your request
Or customized
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
All the product can be customized.
Main Specifications and Dimensions:
Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
100-300 | 30-100 | 4*12 | 20-200 | 30 |
301-600 | 101-200 | 6*15 | 50-200 | 50 |
601-900 | 201-300 | 8*18 | 100-800 | 60 |
901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
1201-1600 | 401-500 | 12*22 | 150-1200 | 80 |
500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Brief introduction:
toolbox gas spring/gas spring lid support also called gas spring
lid bar , it can play a role in support, cushioning, there is no
stop at trip. It used comfortable, convenient installation. Mainly
used in aircraft, automobile, engineering machinery, furniture and
office supplies industry.

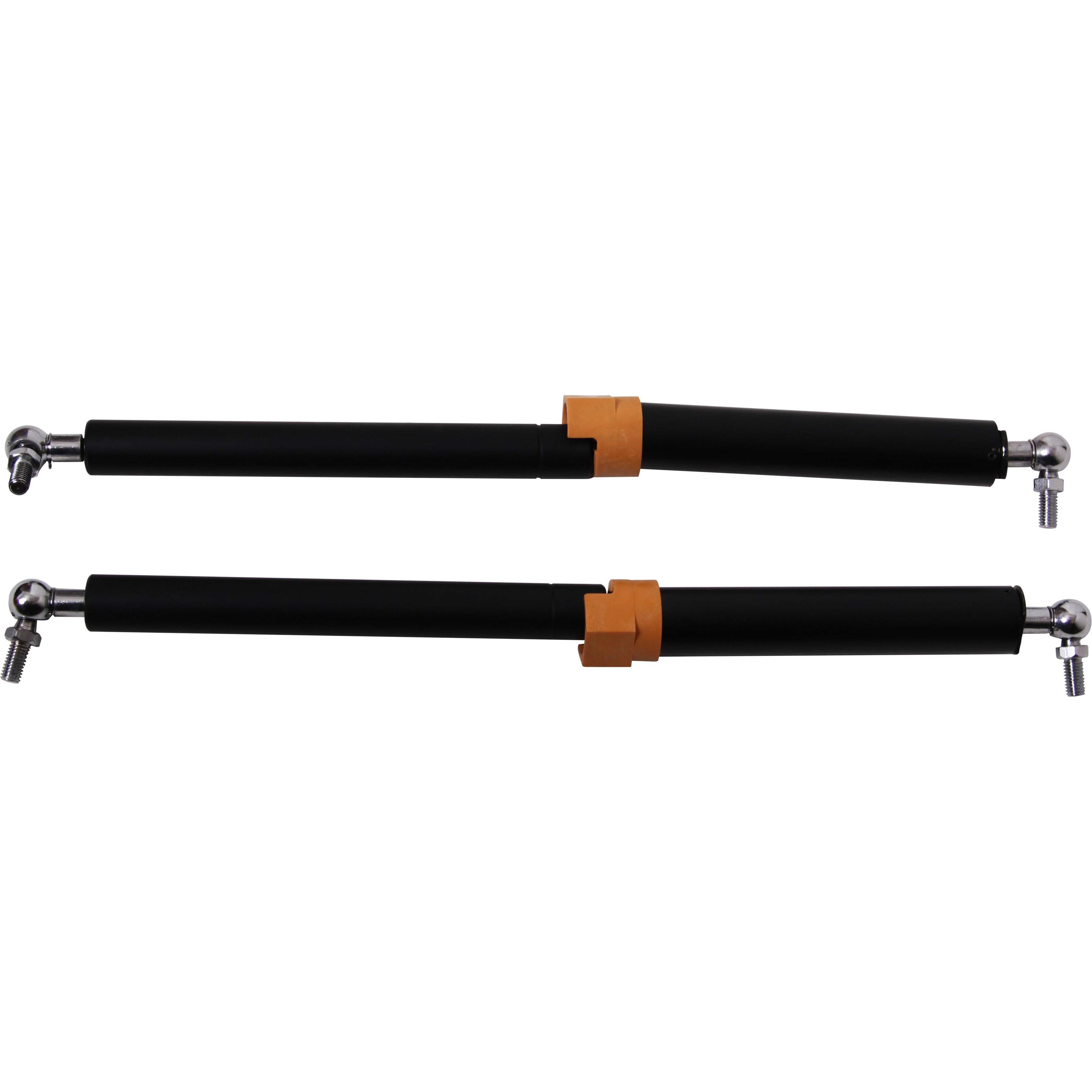

Pictures:
