Parameter:
Rod diameter:6mm
Tube diameter:15mm
Stroke length:90mm
Extended length:300mm
Force:30N
Specifications
1. High quality
2. Competitive price
3. Silence when moving
4. Fast delivery
All the product can be customized.
We can supply as below:
Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
100-300 | 30-100 | 4*12 | 20-200 | 30 |
301-600 | 101-200 | 6*15 | 50-200 | 50 |
601-900 | 201-300 | 8*18 | 100-800 | 60 |
901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
1201-1600 | 401-500 | 12*22 | 150-1200 | 80 |
500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
If you have your drawing, detail data or special requirements of
gas spring, just please let us know. We could produce as your
design or design for you.
Product Name:Gas spring / Compression gas spring / Free gas spring
/ Lockable gas spring / Locking gas spring / Rigid lockable gas
spring / Elastic lockable gas spring / Gas struts / Gas lift / Door
closer
Gas : Nitrogen filled inside
Material: Stainless steel
Color: Black , silver or as the client request.
Connector:Hingle eye , ball joint and so on
Quality: Our gas spring can open and close for 100,000 times.
Meeting ISO International Standard
Pass the SGS test certification
Packing:1 piece in one plastic bag,then 50-100 in a carton
Also can accroding to customer's request
Marking:It is possible to mark your logo as request.
No specified , we will mark our logo as standard
Warranty: With one year guarantee except man-made trouble
Delivery Lead Time: 7-10 working days after get your payment
Delivery Term: EXW & CIF & FOB
Shipping: We can accept your appionted forwarder.
Sample : Two samples are free, just freight will be undertaken by your
side. Or you can arrange global express company to pick up the
samples from our factory.
Our service:Quick responses with full attention within 24 hours.
OEM or ODM orders are welcome.
Samples and production status updated promptly.
Fast and safe delivery for samples and orders.
Best service before and after sales.
Company Introduction:
Guang Zhou Automotive Gas Spring Co.,LTD was established in
June,2002,it is a specialized company which dedicated to gas spring
research and development,production and sales.We have been in
production and export business for more than 11 years,now we have
client from Europe,North America ,South America,Middle East Asia
etc.
Our pursuit is Good Quality,Good Service ,Long Term cooperation.
Welcome your inquiry anytime.
Welcome to visit our factory

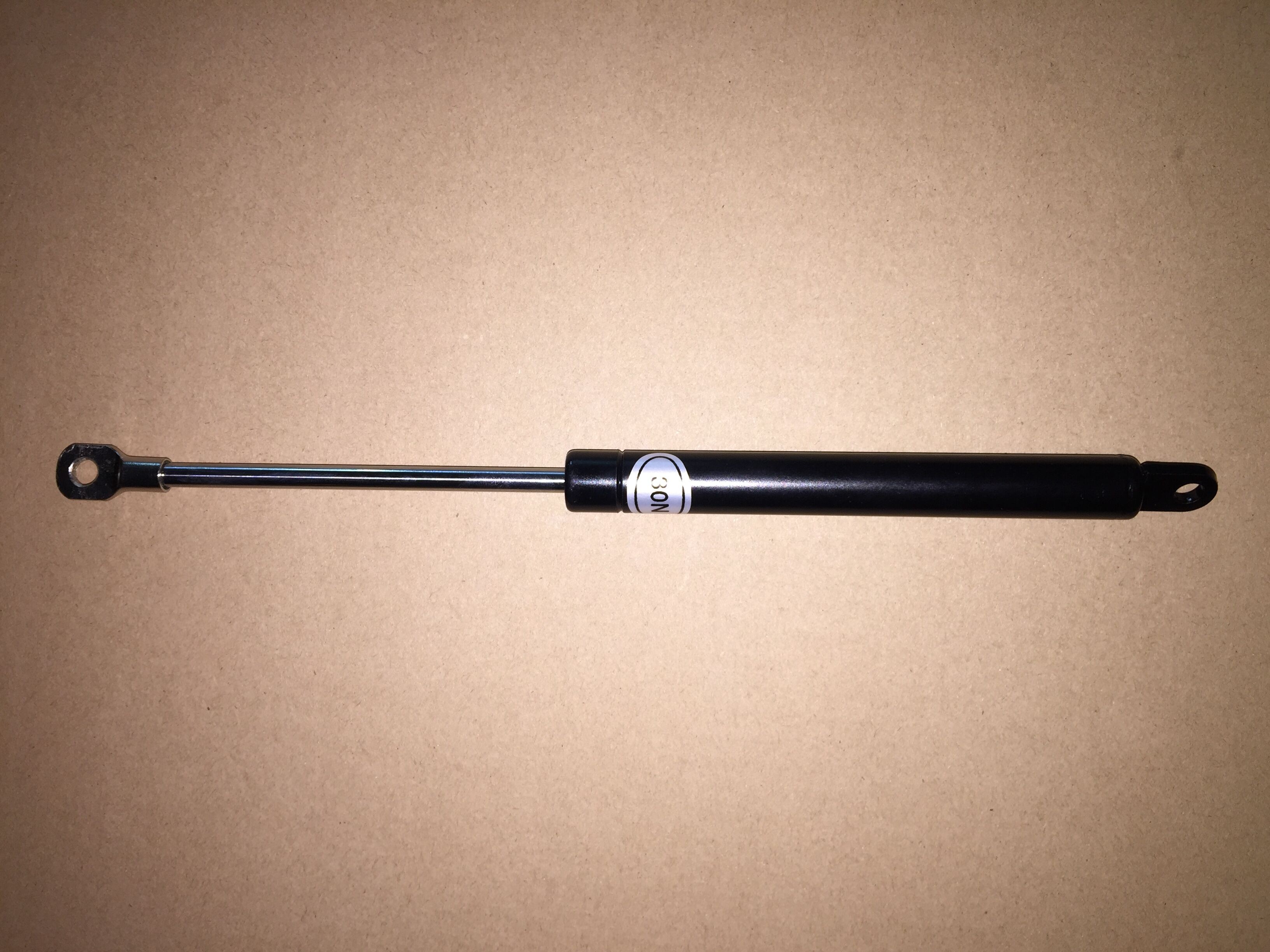

Pictures:
If you have any questions,please feel free to contact me.
